WadaMesh

A standalone touchscreen mesh communicator for the Attaky Mesh series.

WadaMesh brings a full landscape touch interface to Attaky Mesh devices. Chat, contacts, channels, map, and settings run directly on the handheld, with MeshCore-protocol compatible LoRa communication, GPS positioning, battery telemetry, and optional hardware keyboard input.

Highlights

• Full touchscreen interface puts chat, contacts, channels, map, and settings on the device itself.
• MeshCore-protocol compatible radio supports LoRa mesh communication for off-grid messaging.
• GPS positioning integrates location data into the mesh communicator experience.
• Battery telemetry reports device voltage when the power module is attached.
• Keyboard and touch input supports the optional Attaky keyboard module alongside the on-screen keyboard.
• Attaky Mesh bundle support covers Mesh Pocket, Mesh Deck, and Mesh Station.

Touch-First Mesh UI

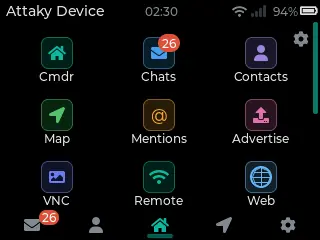

The landscape LVGL interface is designed around direct interaction on the device. Move between chat, contacts, channels, map, and settings directly on the handheld.

Chat, Contacts, Channels, and Map

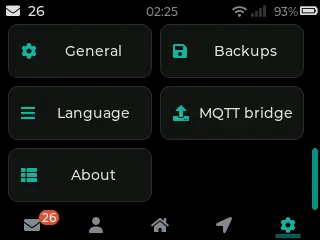

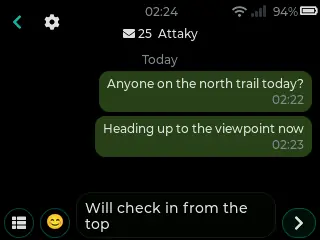

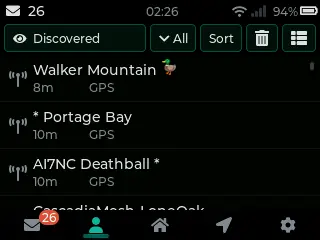

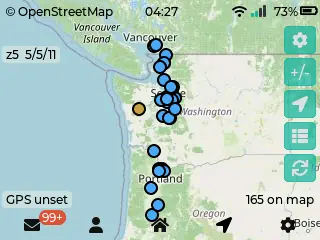

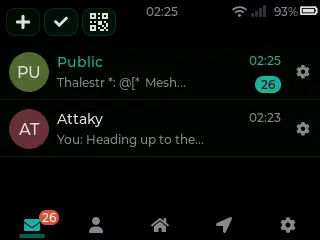

WadaMesh keeps the everyday communicator views on the handheld. Use the touch UI for conversations, contact browsing, channel management, map viewing, and device settings.

Radio, Location, and Telemetry

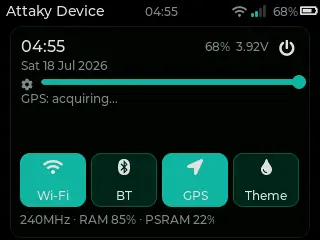

The Attaky port adds the Attaky Mesh series target with LoRa and GPS support for mesh communication and positioning. Battery telemetry adds device voltage reporting when the power module is present.

Keyboard-Ready Input

Mesh Deck users can use the integrated hardware keyboard, and the optional Attaky keyboard module can work alongside the on-screen keyboard for text entry. The keyboard module's symbol panel can summon on-screen keys for characters that are not on the physical layout.

Install from the Attaky Firmware Store

Install from the Attaky firmware store in your browser with one tap. The store handles the device install flow for this Attaky port.

Upstream attribution

WadaMesh is by ALLFATHER-BV and is distributed under the GPL-3.0-or-later license; this Attaky port is forked from upstream beta_47.

Compatibility

WadaMesh requires the Attaky Core and the LoRa + GPS expansion; the power module and the Attaky keyboard module are both optional.
